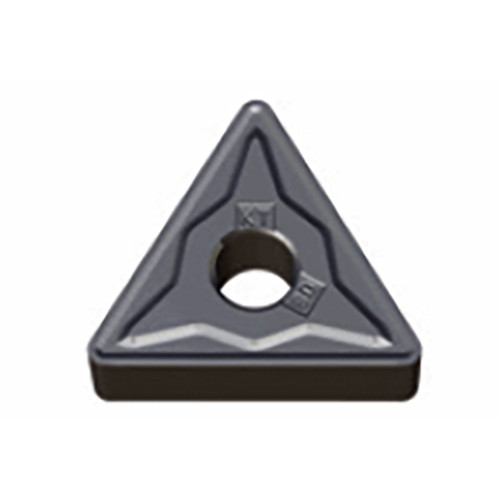

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec TNMG 160412 KT TT7005
$18.85$17.14 Ex. GST
Negative 60° Triangular inserts for roughing of cast irons and good tool life on interrupted conditions
Applicable Material:, Cast Iron, Grade: TT7005 Application:, Ext 60° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.45 mm Corner Radius (RE): 1.2 mm Depth of Cut Maximum (APMX): 6.3 mm Cutting Edge Length (L): 16.5 mm Min. Turning Feed (ft(min)): 0.2 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.56 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3 Unit: M
