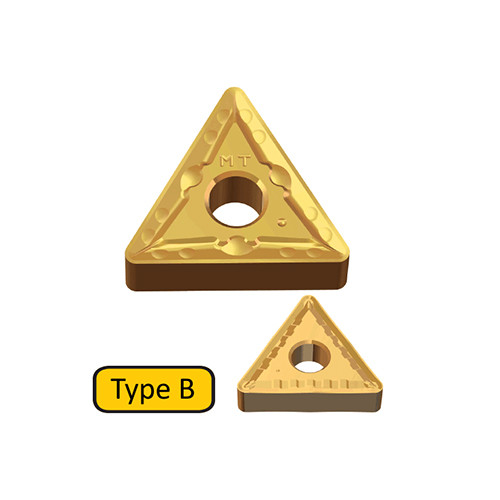

Taegutec TNMG 220412 MT TT5100

Applicable Material:, Steel, Stainless Steel, Grade: TT5100
Application:, Ext 60° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1.5 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 5 mm
Cutting Edge Length (L): 22 mm
Min. Turning Feed (ft(min)): 0.2 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.5 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
