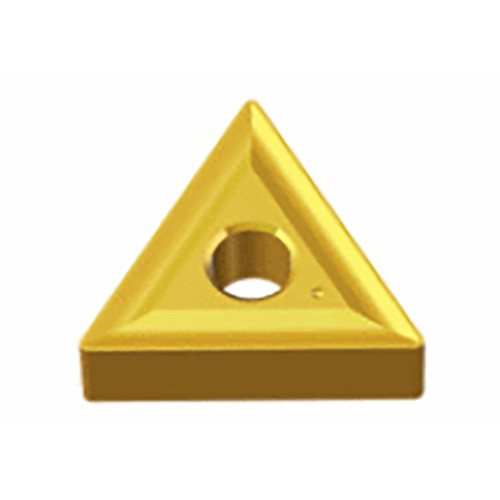

Taegutec TNMG 330716 TT8135B

Applicable Material:, Steel, Grade: TT8135B
Application:, Ext 60° App 60° Triangle, Ext 60° Neutral 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 3 mm
Corner Radius (RE): 1.6 mm
Depth of Cut Maximum (APMX): 9 mm
Cutting Edge Length (L): 29 mm
Min. Turning Feed (ft(min)): 0.35 mm/rev
Insert Thickness (S): 7.94 mm
Max. Turning Feed (ft(max)): 0.7 mm/rev
Inscribed Circle Diameter (IC): 19.05 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
