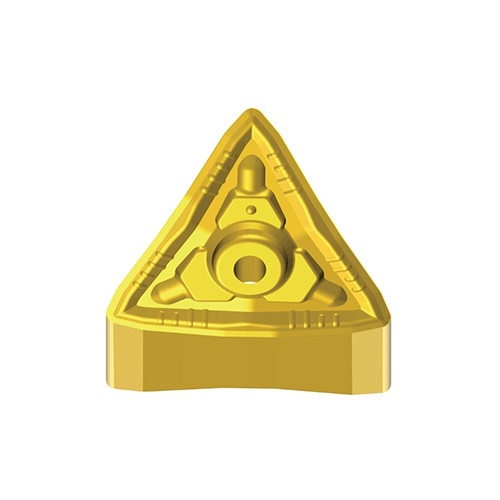

Taegutec TNMV 210908-BS TT9225

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9225
Application:, Ext15(BWT)&95(FWT) 80°triangul, High Feed & All directional Turning, Inserts, Y Axis holders, Min D.O.C.: 0.7 mm

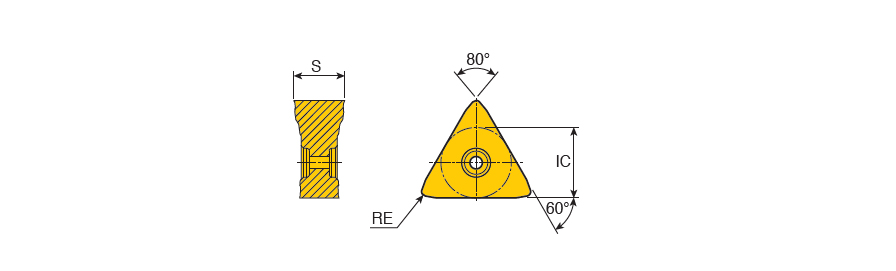

Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 2 mm
Cutting Edge Length (L): 14.84 mm
Min. Turning Feed (ft(min)): 0.6 mm/rev
Insert Thickness (S): 9 mm
Max. Turning Feed (ft(max)): 1.2 mm/rev
Inscribed Circle Diameter (IC): 12.5 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al203+TiCN
Unit: M
