Taegutec TNMX 1806 PNTR-M TT6080

Product Code: 6134315

$43.92$39.93 Ex. GST

Product Code: 6134315 SKU 6134315 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

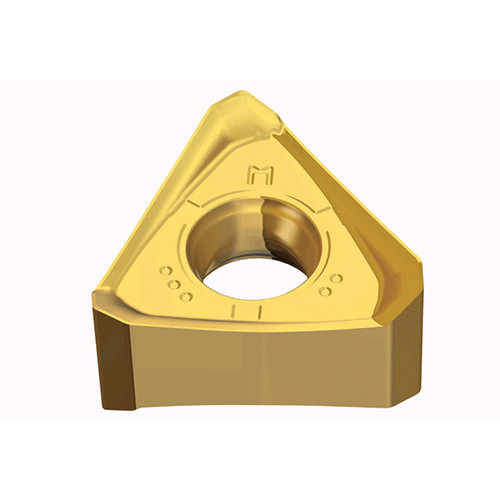

Triangular double-sided inserts with 6 helical cutting edges for general machining for 90° shoulders

Weight	0.0136 kg
barcode

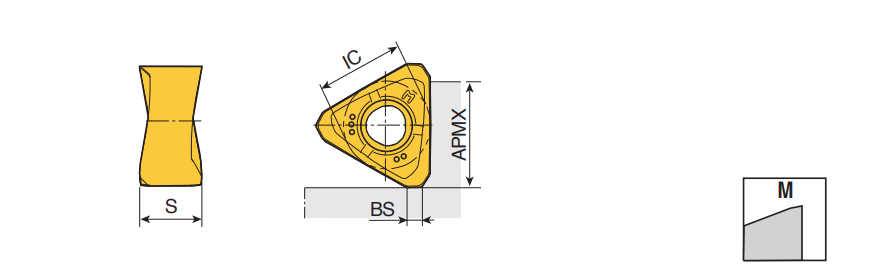

Additional Information	Applicable Material:, Cast Iron, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.15 mm/tooth Application:, Facing, Inserts, Shouldering, Slotting, Cutting Edge Material: Carbide Cutting Edge Length (L): 13 mm Minimum Feed per Tooth (fz(min)): 0.07 mm/tooth Depth of Cut Maximum (APMX): 11 mm Number of Cutting Edges: 6 Inscribed Circle Diameter (IC): 11.65 mm Measurement Type: Metric Insert Thickness (S): 8 mm Body Material: Carbide Coating: AlTiN+TiN Unit: M Grade: TT6080
