Taegutec TNMX 1806 PNTR-SMR2TT6080

Product Code: 6146712

$47.43$43.12 Ex. GST

Product Code: 6146712 SKU 6146712 Categories , ,

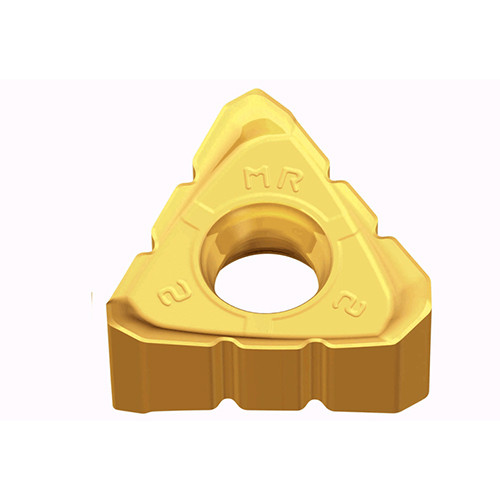

Taegutec TNMX 1806 PNTR-SMR2TT6080
Taegutec TNMX 1806 PNTR-SMR2TT6080 - Image 2
Taegutec TNMX 1806 PNTR-SMR2TT6080 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au
Get advice now

Description

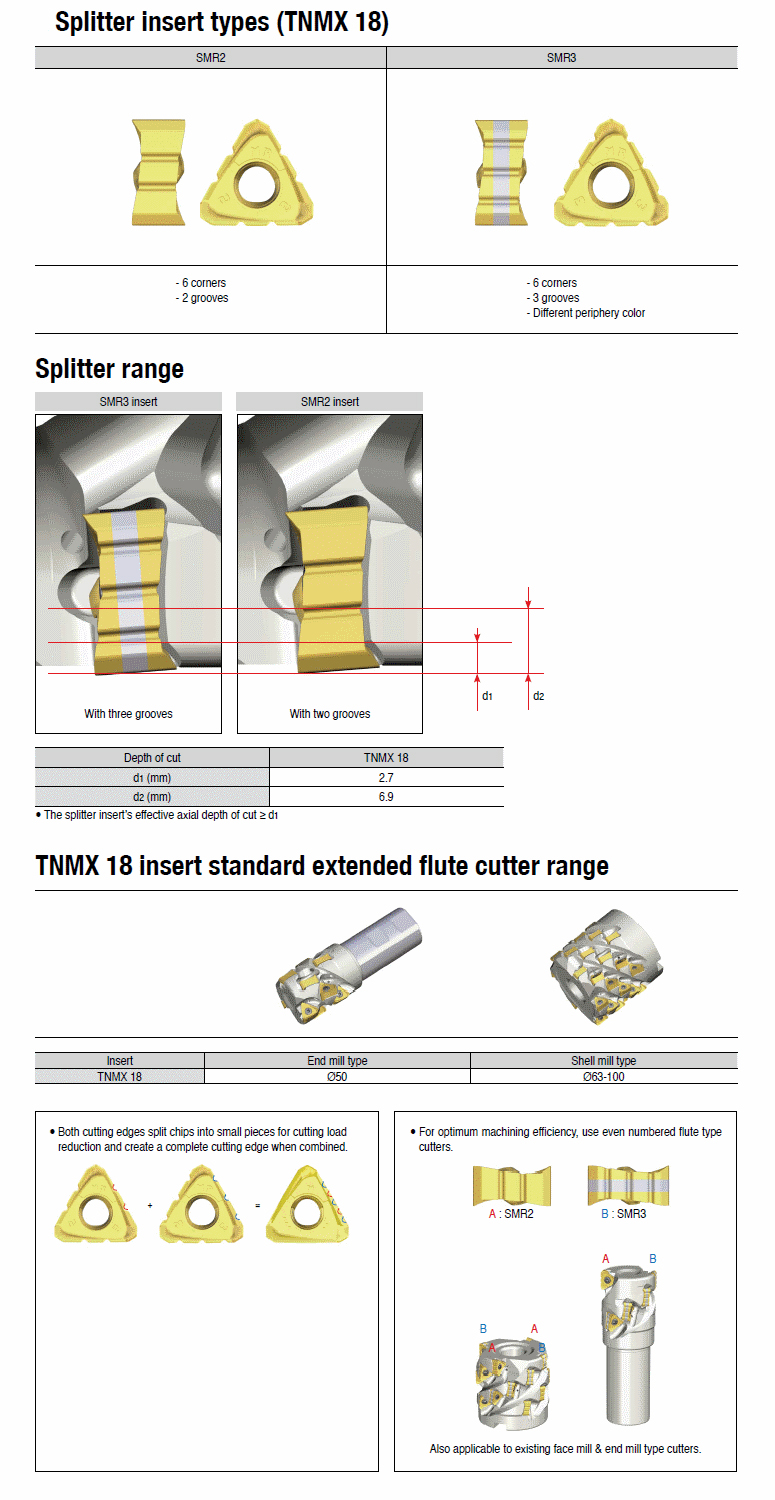

Triangular double-sided chip splitter inserts with 6 cutting edges of TNMX 18 & two chip splitters for low cutting force & general machining & higher productivity

Additional information

Weight 0.0098 kg
barcode
Additional Information

Applicable Material:, Cast Iron, Hard Materials, Maximum Feed per Tooth (fz(max)): 0.2 mm/tooth
Application:, Facing, Inserts, Shouldering, Slotting, Cutting Edge Material: Carbide

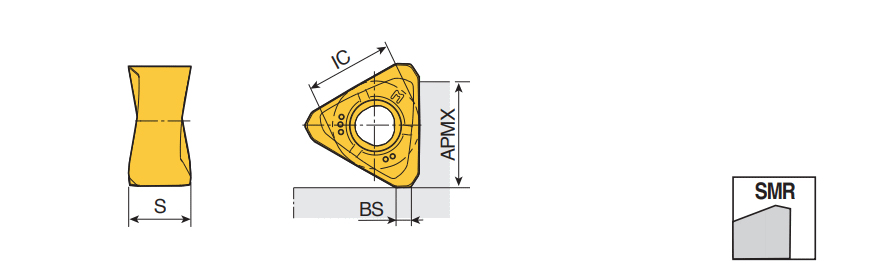

Cutting Edge Length (L): 13 mm
Minimum Feed per Tooth (fz(min)): 0.1 mm/tooth
Depth of Cut Maximum (APMX): 11 mm
Number of Cutting Edges: 6
Inscribed Circle Diameter (IC): 11.65 mm
Measurement Type: Metric
Insert Thickness (S): 8 mm
Body Material: Carbide
Coating: AlTiN+TiN
Unit: M
Grade: TT6080

Brand

Taegutec
