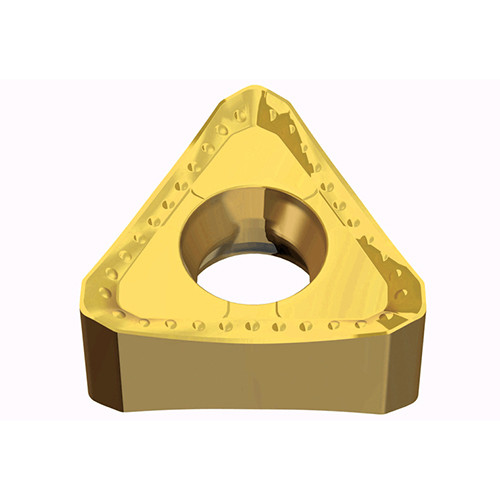

Triangular double-sided inserts with strong 6 cutting edges for 90° shouldering of heavy & general machining
Additional information
Weight
0.0172 kg
barcode
Additional Information
Applicable Material:, Steel, Hard Materials, Grade: TT2510
Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth

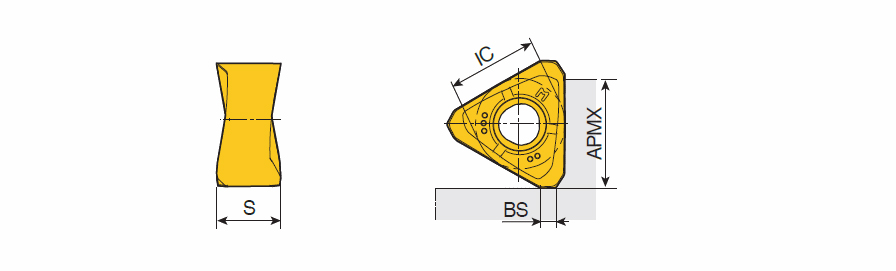

Cutting Edge Length (L): 16.4 mm
Cutting Edge Material: Carbide
Depth of Cut Maximum (APMX): 12 mm
Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Insert Thickness (S): 8 mm
Body Material: Carbide
Coating: AlTiN
Unit: M
