Taegutec TNMX 2207 PNTN TT9080

Product Code: 5610511

$46.12$41.93 Ex. GST

Product Code: 5610511 SKU 5610511 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

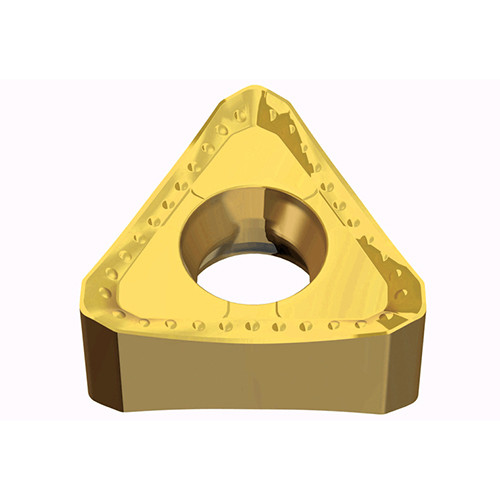

Taegutec TNMX 2207 PNTN TT9080

Taegutec TNMX 2207 PNTN TT9080 - Image 2

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Triangular double-sided inserts with strong 6 cutting edges for 90° shouldering of heavy & general machining

Additional information

Weight	0.0167 kg
barcode

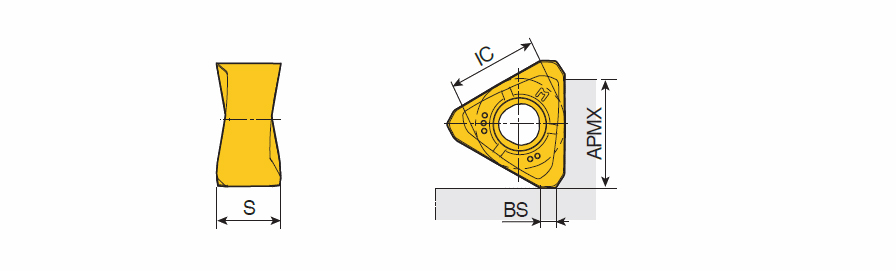

Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT9080 Application:, Facing, Inserts, Shouldering, Slotting, Maximum Feed per Tooth (fz(max)): 0.3 mm/tooth Cutting Edge Length (L): 16.4 mm Cutting Edge Material: Carbide Depth of Cut Maximum (APMX): 12 mm Minimum Feed per Tooth (fz(min)): 0.15 mm/tooth Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Insert Thickness (S): 8 mm Body Material: Carbide Coating: TiAlN+TiN Unit: M

Brand

Taegutec
