Taegutec TOP 2135-20T2-04

Product Code: 6302650

$582.23$529.30 Ex. GST

Product Code: 6302650 SKU 6302650 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

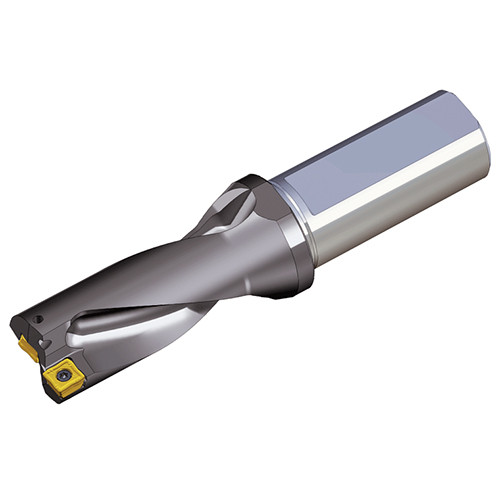

Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Additional information

Weight 0.4800 kg
Dimensions
barcode
Additional Information

Cutting Diameter (DC): 13.5 mm
Overall Length (OAL): 96 mm
Usable Length (LU): 28 mm
Connection Thread Size (Ts): M13X1.0
Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 20 mm
Length Group: 2xD
Shank Length (LS): 50 mm
Body Material: Steel
Functional Length (LF): 46 mm
Unit: M

Brand

Taegutec
