Taegutec TOP 2165-25T2-06

Product Code: 3203827

$593.76$539.78 Ex. GST

Product Code: 3203827 SKU 3203827 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

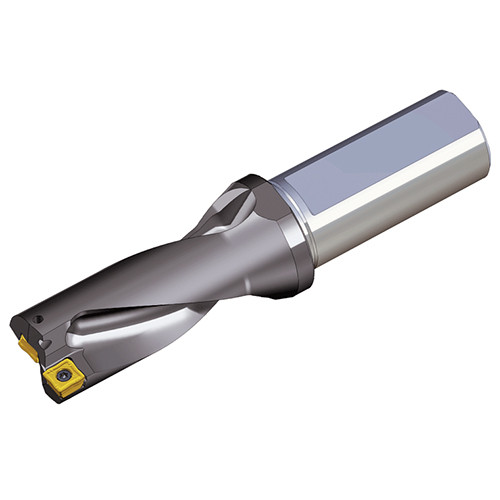

Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Weight	0.2900 kg
Dimensions
barcode

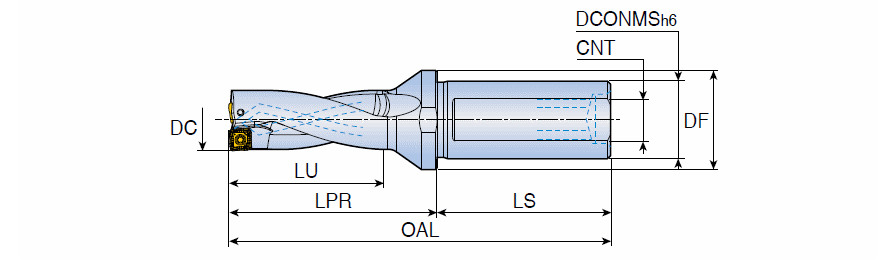

Additional Information	Cutting Diameter (DC): 16.5 mm Overall Length (OAL): 110 mm Usable Length (LU): 34 mm Connection Thread Size (Ts): M16X1.5 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 25 mm Length Group: 2xD Shank Length (LS): 56 mm Body Material: Steel Functional Length (LF): 54 mm Unit: M
