Taegutec TOP 2250-32T2-08

Product Code: 6122288

$618.40$562.18 Ex. GST

Product Code: 6122288 SKU 6122288 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

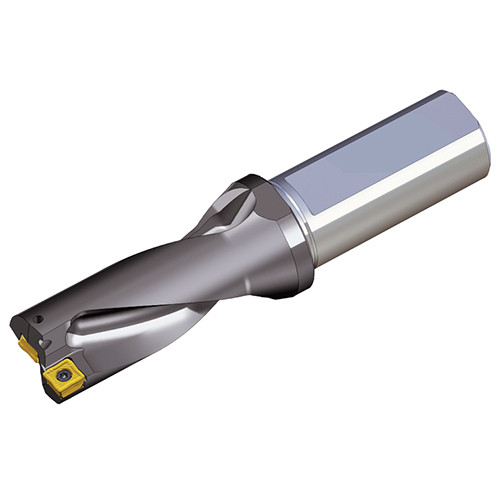

Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Additional information

Weight 0.4800 kg
Dimensions
barcode
Additional Information

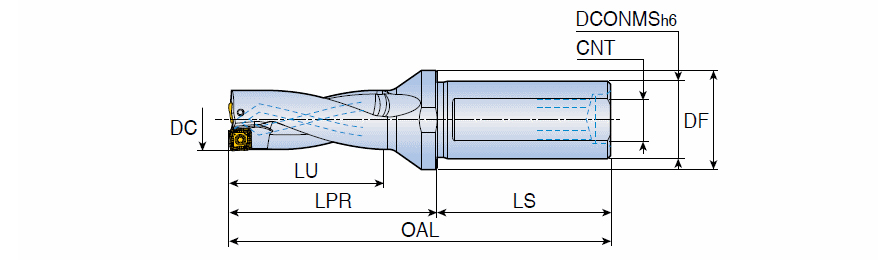

Cutting Diameter (DC): 25 mm
Overall Length (OAL): 132 mm
Usable Length (LU): 50 mm
Connection Thread Size (Ts): M22X2.0
Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Length Group: 2xD
Shank Length (LS): 60 mm
Body Material: Steel
Functional Length (LF): 72 mm
Unit: M

Brand

Taegutec
