Taegutec TOP 2255-25T2-08

Product Code: 3203835

$672.66$611.51 Ex. GST

Product Code: 3203835 SKU 3203835 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

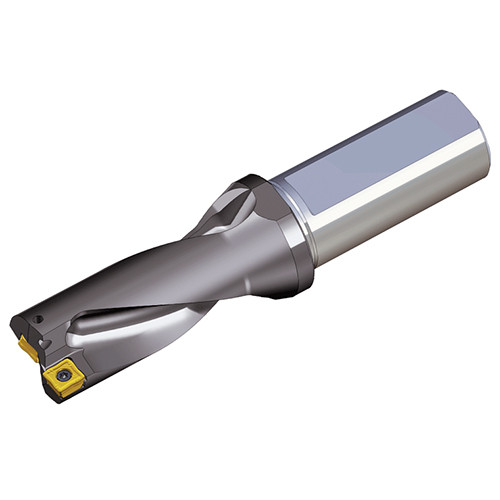

Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Additional information

Weight 0.3720 kg
Dimensions
barcode
Additional Information

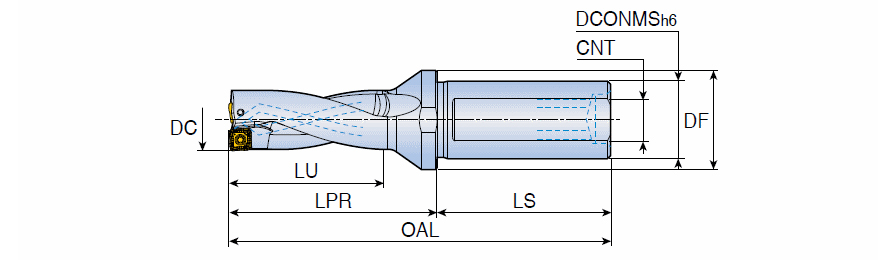

Cutting Diameter (DC): 25.5 mm
Overall Length (OAL): 129 mm
Usable Length (LU): 52 mm
Connection Thread Size (Ts): M22X2.0
Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 25 mm
Length Group: 2xD
Shank Length (LS): 56 mm
Body Material: Steel
Functional Length (LF): 73 mm
Unit: M
