Taegutec TOP 2280-25T2-09

Product Code: 6102599

$672.66$611.51 Ex. GST

Product Code: 6102599 SKU 6102599 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

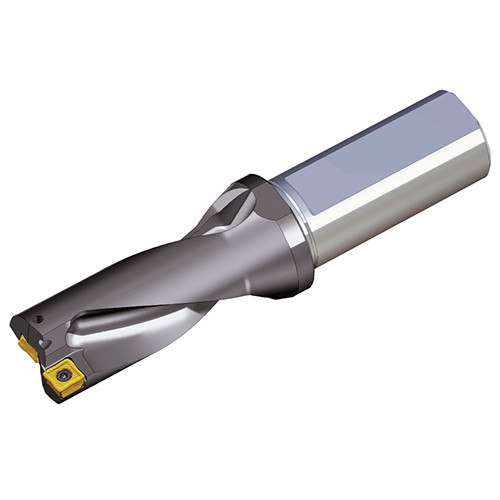

Taegutec TOP 2280-25T2-09

Taegutec TOP 2280-25T2-09 - Image 2

Taegutec TOP 2280-25T2-09 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Additional information

Weight	0.5200 kg
Dimensions
barcode

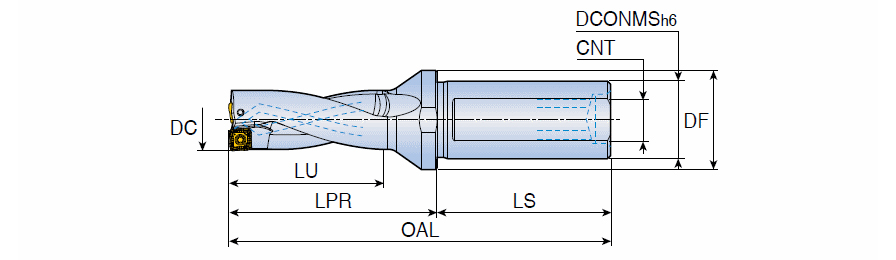

Additional Information	Cutting Diameter (DC): 28 mm Overall Length (OAL): 135 mm Usable Length (LU): 56 mm Connection Thread Size (Ts): M16X1.5 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 25 mm Length Group: 2xD Shank Length (LS): 56 mm Body Material: Steel Functional Length (LF): 79 mm Unit: M

Brand

Taegutec
