Taegutec TOP 2470-40T2-15

Product Code: 6101305

$917.73$834.30 Ex. GST

Product Code: 6101305 SKU 6101305 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

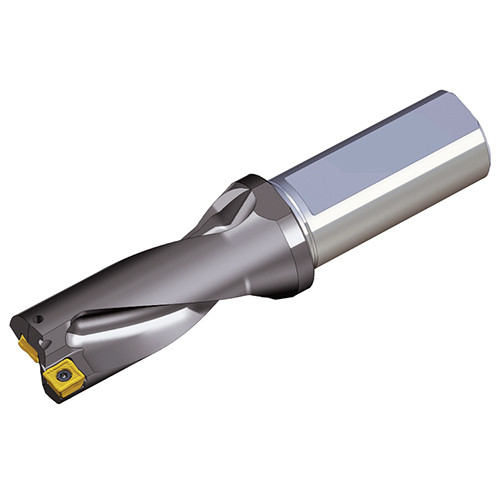

Taegutec TOP 2470-40T2-15

Taegutec TOP 2470-40T2-15 - Image 2

Taegutec TOP 2470-40T2-15 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Additional information

Weight	1.7000 kg
Dimensions
barcode

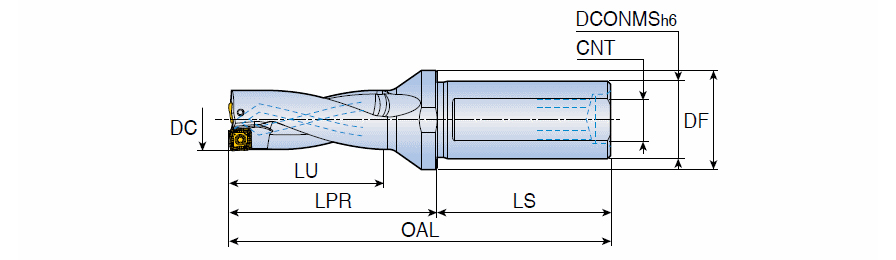

Additional Information	Cutting Diameter (DC): 47 mm Overall Length (OAL): 199 mm Usable Length (LU): 94 mm Connection Thread Size (Ts): M30X2.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 2xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 129 mm Unit: M

Brand

Taegutec
