Taegutec TOP 2480-40T2-15

Product Code: 6101306

$917.73$834.30 Ex. GST

Product Code: 6101306 SKU 6101306 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

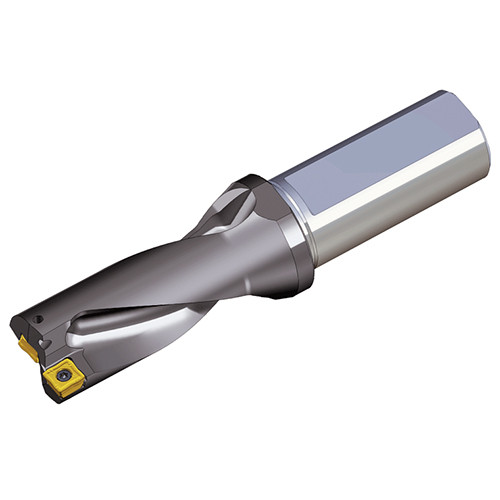

Indexable drills with unique square inserts & coolant holes, drilling depth 2xD

Additional information

Weight 1.7700 kg
Dimensions
barcode
Additional Information

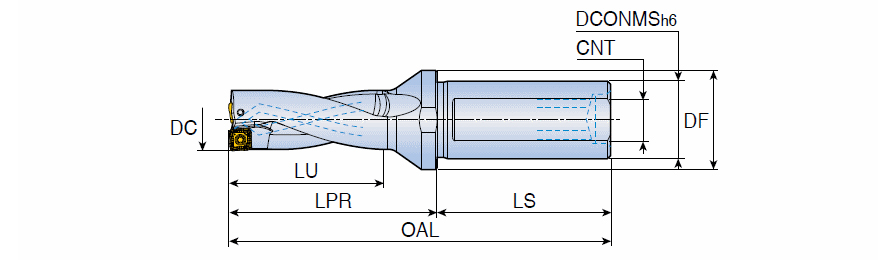

Cutting Diameter (DC): 48 mm
Overall Length (OAL): 201 mm
Usable Length (LU): 96 mm
Connection Thread Size (Ts): M30X2.0
Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 40 mm
Length Group: 2xD
Shank Length (LS): 70 mm
Body Material: Steel
Functional Length (LF): 131 mm
Unit: M

Brand

Taegutec
