Taegutec TOP 3076-80-50T2-13CA

Product Code: 6131895

$2,346.65$2,133.32 Ex. GST

Product Code: 6131895 SKU 6131895 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Taegutec TOP 3076-80-50T2-13CA

Taegutec TOP 3076-80-50T2-13CA - Image 2

Taegutec TOP 3076-80-50T2-13CA - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

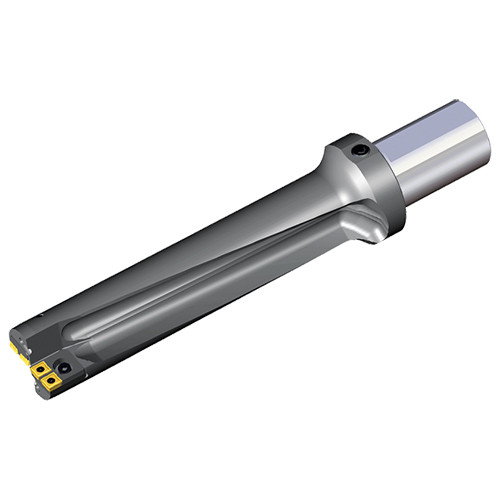

Large diameter drills with cartridges, square inserts and setting plates for diameter adjustment in drilling depth of 3xD

Additional information

Weight	1.5000 kg
Dimensions
barcode

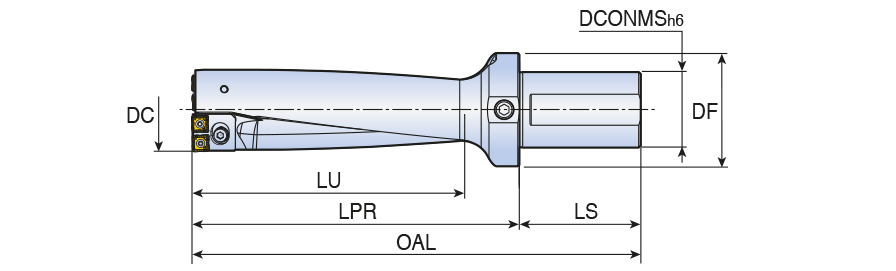

Additional Information	Application:, Drilling, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 50 mm Length Group: 3xD Overall Length (OAL): 368 mm Body Material: Steel Cutting Diameter Minimum (DCN): 76 mm Unit: M Cutting Diameter Maximum (DCX): 80 mm

Brand

Taegutec
