Taegutec TOP 3255-25T2-08

Product Code: 3203800

$652.95$593.59 Ex. GST

Product Code: 3203800 SKU 3203800 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

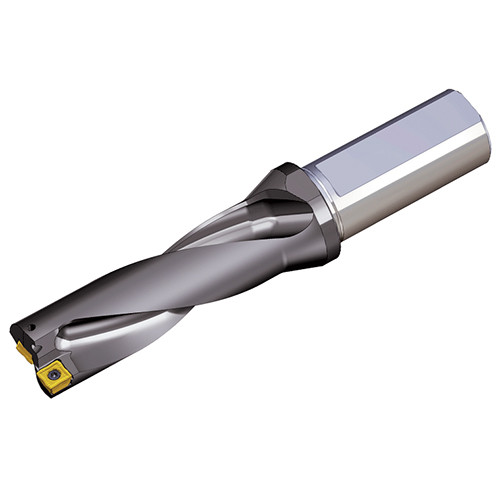

Indexable drills with unique square inserts & coolant holes, drilling depth 3xD

Additional information

Weight 0.4200 kg
Dimensions
barcode
Additional Information

Cutting Diameter (DC): 25.5 mm
Overall Length (OAL): 155 mm
Usable Length (LU): 78 mm
Connection Thread Size (Ts): M16X1.5
Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 25 mm
Length Group: 3xD
Shank Length (LS): 56 mm
Body Material: Steel
Functional Length (LF): 99 mm
Unit: M

Brand

Taegutec
