Taegutec TOP 3330-32T2-11

Product Code: 6101315

$802.64$729.67 Ex. GST

Product Code: 6101315 SKU 6101315 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

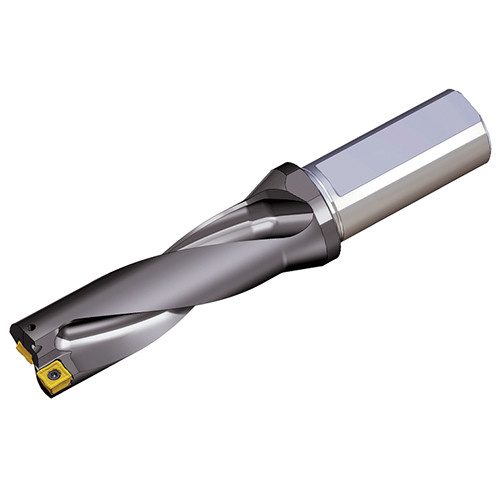

Indexable drills with unique square inserts & coolant holes, drilling depth 3xD

Additional information

Weight 0.8200 kg
Dimensions
barcode

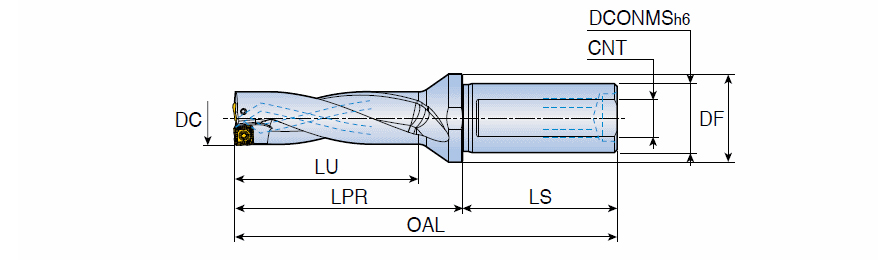

Additional Information

Cutting Diameter (DC): 33 mm
Overall Length (OAL): 179 mm
Usable Length (LU): 96 mm
Connection Thread Size (Ts): M22X2.0
Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 32 mm
Length Group: 3xD
Shank Length (LS): 60 mm
Body Material: Steel
Functional Length (LF): 122 mm
Unit: M
