Taegutec TOP 3340-40T2-11

Product Code: 6122308

$817.42$743.11 Ex. GST

Product Code: 6122308 SKU 6122308 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

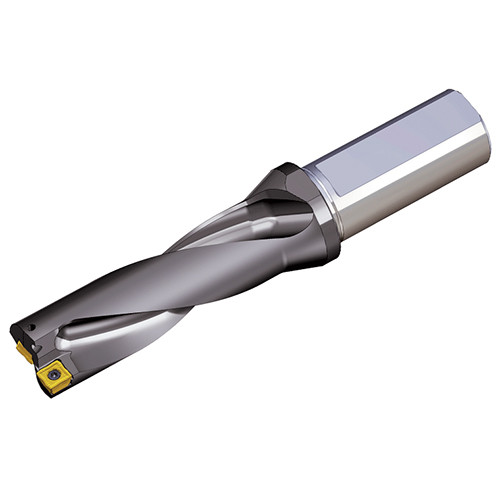

Indexable drills with unique square inserts & coolant holes, drilling depth 3xD

Weight	1.1900 kg
Dimensions
barcode
Additional Information	Cutting Diameter (DC): 34 mm Overall Length (OAL): 195 mm Usable Length (LU): 102 mm Connection Thread Size (Ts): M30X2.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 3xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 125 mm Unit: M
