Taegutec TOP 3360-32T2-11

Product Code: 6101318

$817.42$743.11 Ex. GST

Product Code: 6101318 SKU 6101318 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Taegutec TOP 3360-32T2-11

Taegutec TOP 3360-32T2-11 - Image 2

Taegutec TOP 3360-32T2-11 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

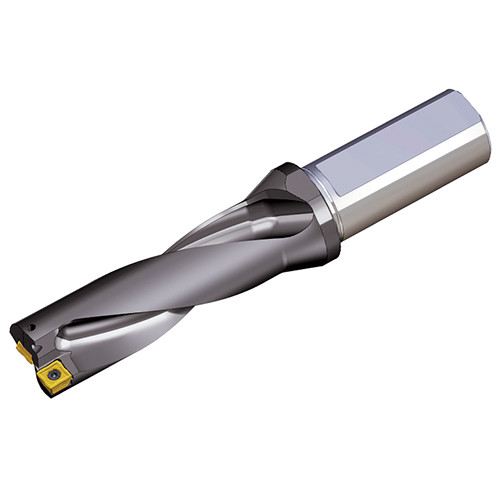

Indexable drills with unique square inserts & coolant holes, drilling depth 3xD

Additional information

Weight	0.9600 kg
Dimensions
barcode

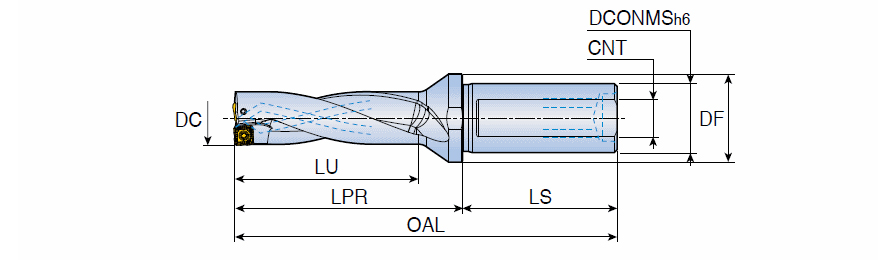

Additional Information	Cutting Diameter (DC): 36 mm Overall Length (OAL): 191 mm Usable Length (LU): 108 mm Connection Thread Size (Ts): M22X2.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Length Group: 3xD Shank Length (LS): 60 mm Body Material: Steel Functional Length (LF): 131 mm Unit: M

Brand

Taegutec
