Taegutec TOP 4250-25T2-08

Product Code: 3203488

$748.33$680.30 Ex. GST

Product Code: 3203488 SKU 3203488 Categories , ,

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

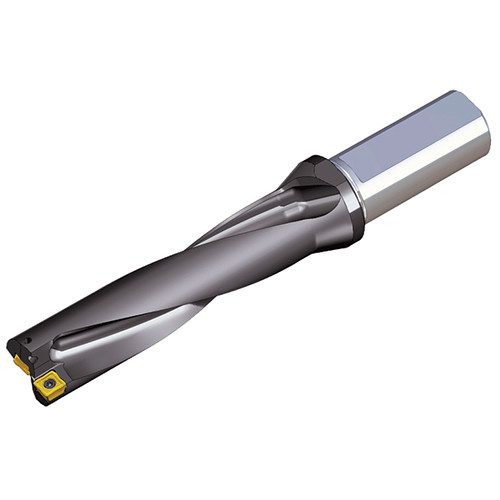

Indexable drills with unique square inserts & coolant holes, drilling depth 4xD

Additional information

Weight 0.4600 kg
Dimensions
barcode
Additional Information

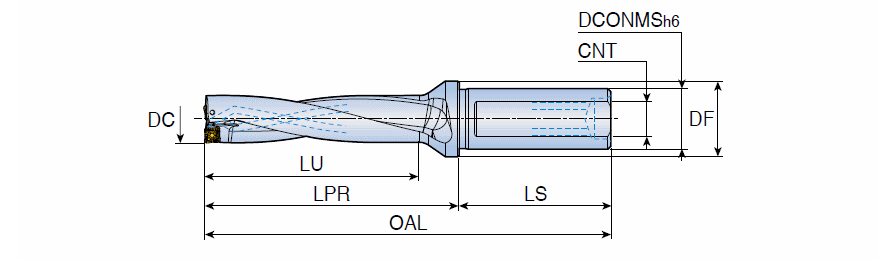

Cutting Diameter (DC): 25 mm
Overall Length (OAL): 178 mm
Usable Length (LU): 100 mm
Connection Thread Size (Ts): M16X1.5
Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric
Connection Diameter Machine Side (DCONMS): 25 mm
Length Group: 4xD
Shank Length (LS): 56 mm
Body Material: Steel
Functional Length (LF): 122 mm
Unit: M

Brand

Taegutec
