Taegutec TOP 4490-40T2-15

Product Code: 3204702

$1,236.81$1,124.37 Ex. GST

Product Code: 3204702 SKU 3204702 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Taegutec TOP 4490-40T2-15

Taegutec TOP 4490-40T2-15 - Image 2

Taegutec TOP 4490-40T2-15 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

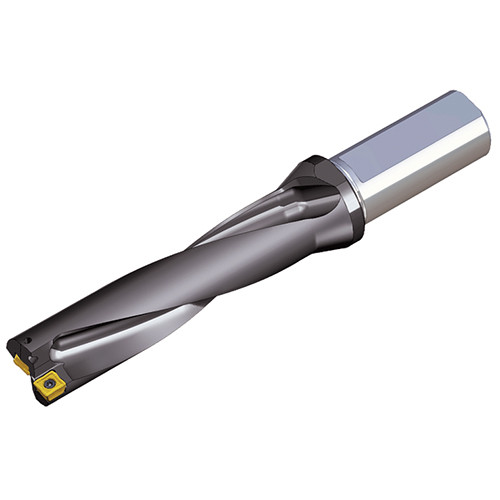

Indexable drills with unique square inserts & coolant holes, drilling depth 4xD

Additional information

Weight	2.4700 kg
Dimensions
barcode

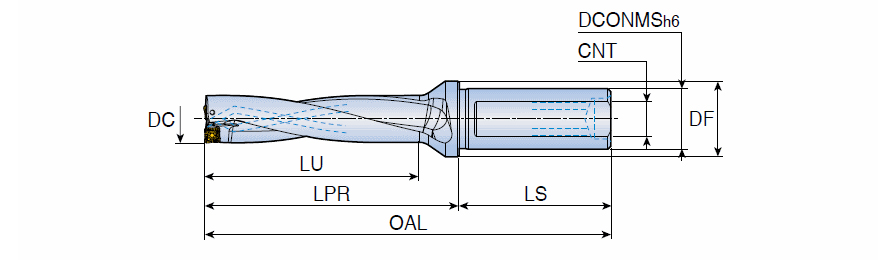

Additional Information	Cutting Diameter (DC): 49 mm Overall Length (OAL): 301 mm Usable Length (LU): 196 mm Connection Thread Size (Ts): M30X2.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 4xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 231 mm Unit: M

Brand

Taegutec
