Taegutec TOP 5135-20T2-04

Product Code: 6302656

$730.24$663.85 Ex. GST

Product Code: 6302656 SKU 6302656 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

Taegutec TOP 5135-20T2-04

Taegutec TOP 5135-20T2-04 - Image 2

Taegutec TOP 5135-20T2-04 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

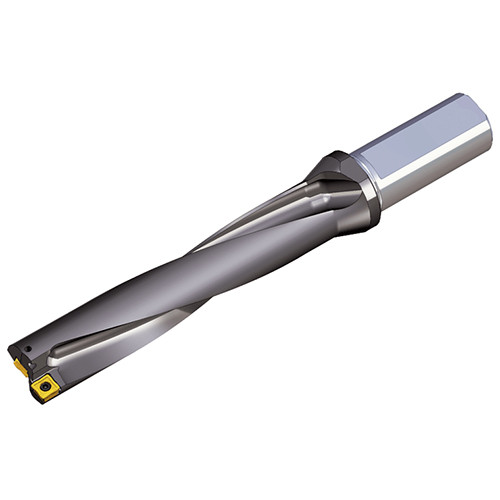

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

Additional information

Weight	0.2200 kg
Dimensions
barcode

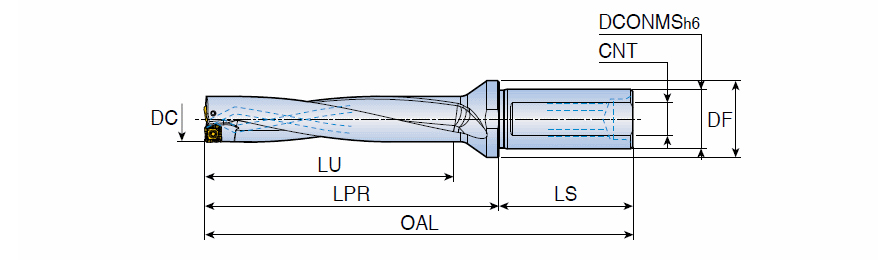

Additional Information	Cutting Diameter (DC): 13.5 mm Overall Length (OAL): 138 mm Usable Length (LU): 70 mm Connection Thread Size (Ts): M13X1.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 20 mm Length Group: 5xD Shank Length (LS): 50 mm Body Material: Steel Functional Length (LF): 88 mm Unit: M

Brand

Taegutec
