Taegutec TOP 5145-20T2-05

Product Code: 3203812

$730.24$663.85 Ex. GST

Product Code: 3203812 SKU 3203812 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

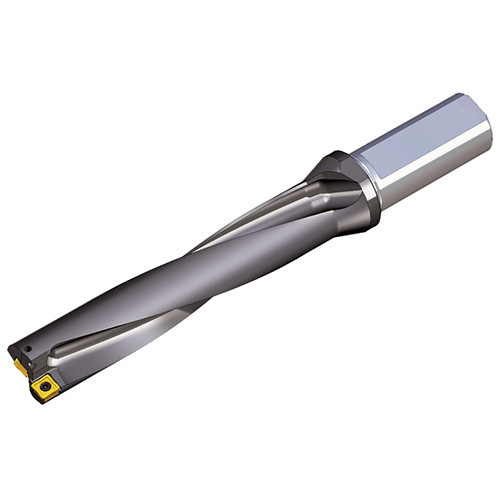

Taegutec TOP 5145-20T2-05

Taegutec TOP 5145-20T2-05 - Image 2

Taegutec TOP 5145-20T2-05 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

Additional information

Weight	0.2100 kg
Dimensions
barcode

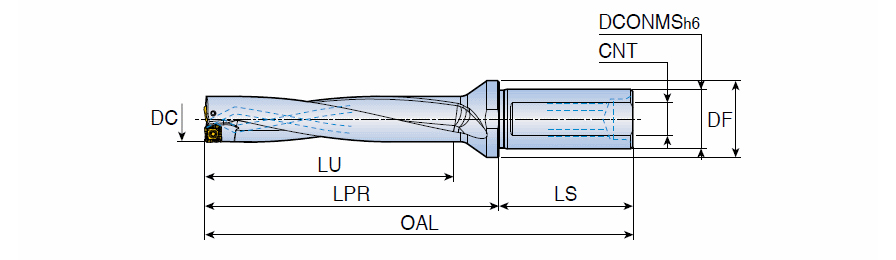

Additional Information	Cutting Diameter (DC): 14.5 mm Overall Length (OAL): 144 mm Usable Length (LU): 75 mm Connection Thread Size (Ts): M13X1.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 20 mm Length Group: 5xD Shank Length (LS): 50 mm Body Material: Steel Functional Length (LF): 94 mm Unit: M

Brand

Taegutec
