Taegutec TOP 5222-25T2-07

Product Code: 3204221

$825.66$750.60 Ex. GST

Product Code: 3204221 SKU 3204221 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

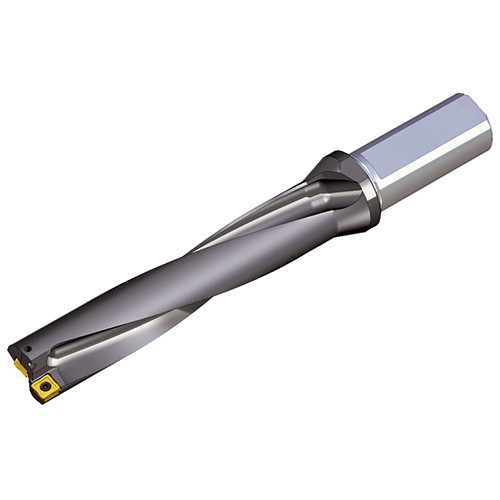

Taegutec TOP 5222-25T2-07

Taegutec TOP 5222-25T2-07 - Image 2

Taegutec TOP 5222-25T2-07 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

Additional information

Weight	0.4300 kg
Dimensions
barcode

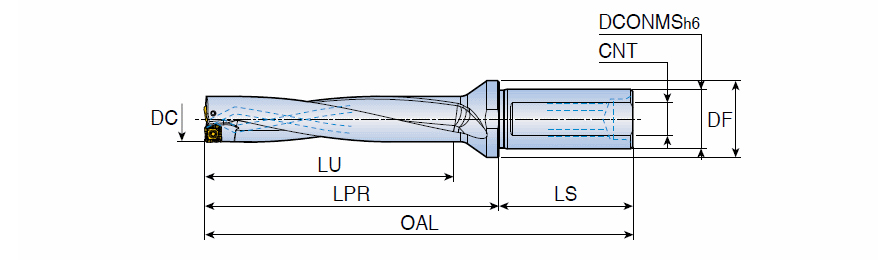

Additional Information	Cutting Diameter (DC): 22.2 mm Overall Length (OAL): 189 mm Usable Length (LU): 110 mm Connection Thread Size (Ts): M16X1.5 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 25 mm Length Group: 5xD Shank Length (LS): 56 mm Body Material: Steel Functional Length (LF): 133 mm Unit: M

Brand

Taegutec
