Taegutec TOP 5230-32T2-08

Product Code: 6122328

$825.66$750.60 Ex. GST

Product Code: 6122328 SKU 6122328 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

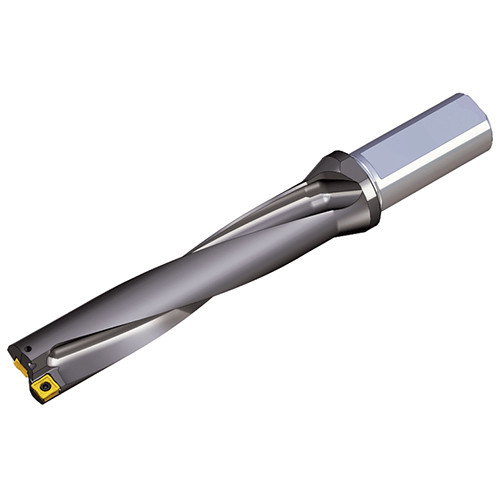

Taegutec TOP 5230-32T2-08

Taegutec TOP 5230-32T2-08 - Image 2

Taegutec TOP 5230-32T2-08 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

Additional information

Weight	0.6000 kg
Dimensions
barcode

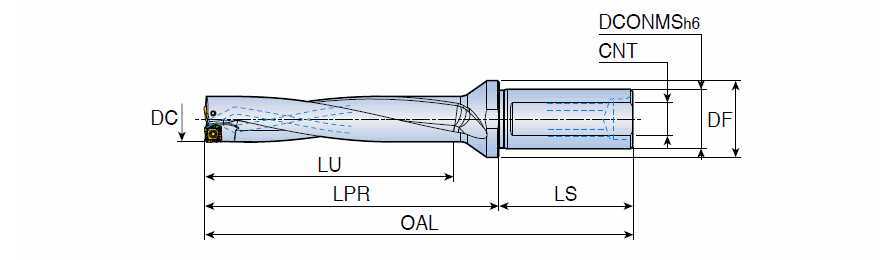

Additional Information	Cutting Diameter (DC): 23 mm Overall Length (OAL): 197 mm Usable Length (LU): 115 mm Connection Thread Size (Ts): M22X2.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 32 mm Length Group: 5xD Shank Length (LS): 60 mm Body Material: Steel Functional Length (LF): 137 mm Unit: M

Brand

Taegutec
