Taegutec TOP 5340-40T2-11

Product Code: 6122338

$1,035.57$941.43 Ex. GST

Product Code: 6122338 SKU 6122338 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

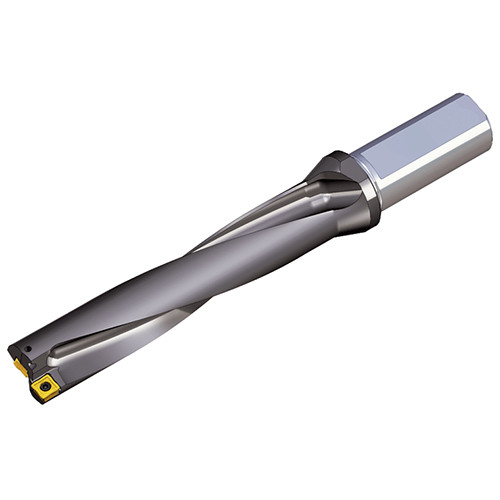

Taegutec TOP 5340-40T2-11

Taegutec TOP 5340-40T2-11 - Image 2

Taegutec TOP 5340-40T2-11 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

Additional information

Weight	1.3500 kg
Dimensions
barcode

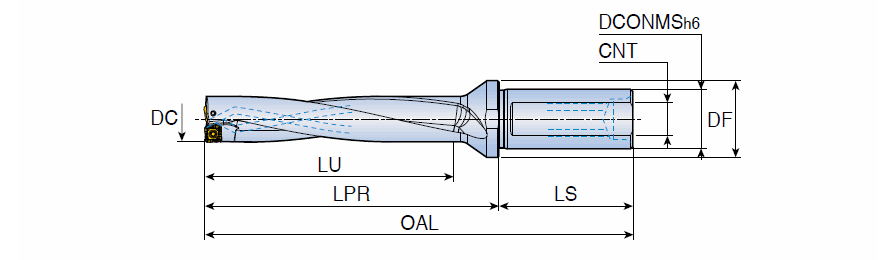

Additional Information	Cutting Diameter (DC): 34 mm Overall Length (OAL): 263 mm Usable Length (LU): 170 mm Connection Thread Size (Ts): M30X2.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 5xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 193 mm Unit: M

Brand

Taegutec
