Taegutec TOP 5430-40T2-13

Product Code: 6101354

$1,142.63$1,038.75 Ex. GST

Product Code: 6101354 SKU 6101354 Categories Carbide, CUTTING TOOLS (HSS & Carbide), DRILLLING

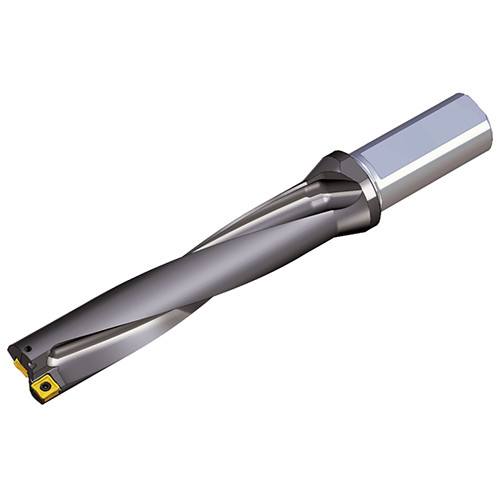

Taegutec TOP 5430-40T2-13

Taegutec TOP 5430-40T2-13 - Image 2

Taegutec TOP 5430-40T2-13 - Image 3

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Description

Indexable drills with unique square inserts & coolant holes, drilling depth 5xD

Additional information

Weight	2.1200 kg
Dimensions
barcode

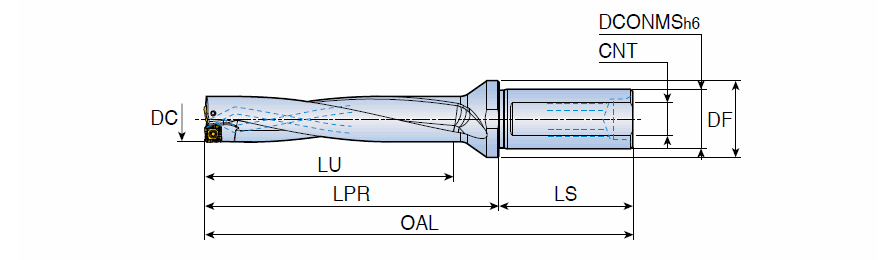

Additional Information	Cutting Diameter (DC): 43 mm Overall Length (OAL): 313 mm Usable Length (LU): 215 mm Connection Thread Size (Ts): M30X2.0 Application:, Drilling, Tools for Swiss Machines, Measurement Type: Metric Connection Diameter Machine Side (DCONMS): 40 mm Length Group: 5xD Shank Length (LS): 70 mm Body Material: Steel Functional Length (LF): 243 mm Unit: M

Brand

Taegutec
