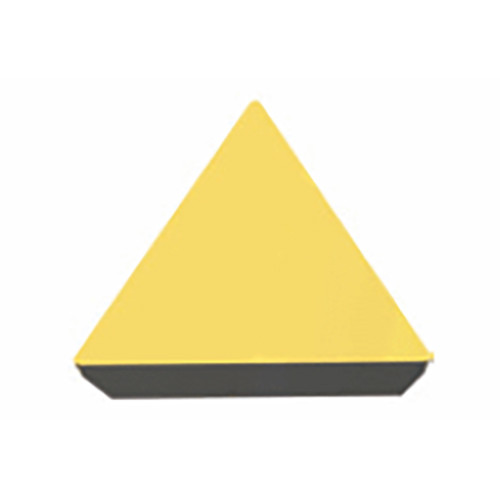

Taegutec TPGN 160304 K10

Applicable Material:, Cast Iron, Aluminum / Non-Ferrous Materials, Super-Alloys / Titanium, Grade: K10
Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 5 mm
Cutting Edge Length (L): 16.5 mm
Min. Turning Feed (ft(min)): 0.07 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: Uncoated
Unit: M
