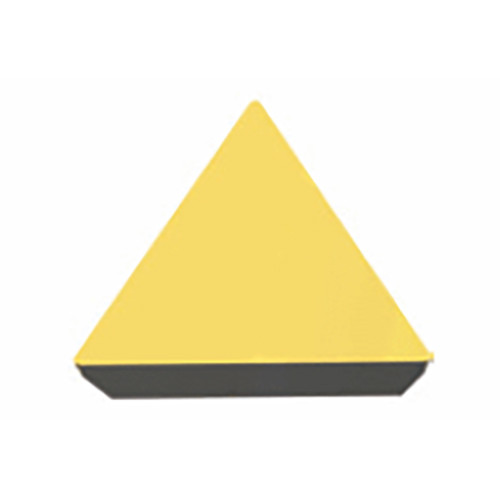

Taegutec TPGN 160312 TT7005

Applicable Material:, Cast Iron, Grade: TT7005
Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1 mm
Corner Radius (RE): 1.2 mm
Depth of Cut Maximum (APMX): 5 mm
Cutting Edge Length (L): 16.5 mm
Min. Turning Feed (ft(min)): 0.15 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.3 mm/rev
Inscribed Circle Diameter (IC): 9.52 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
