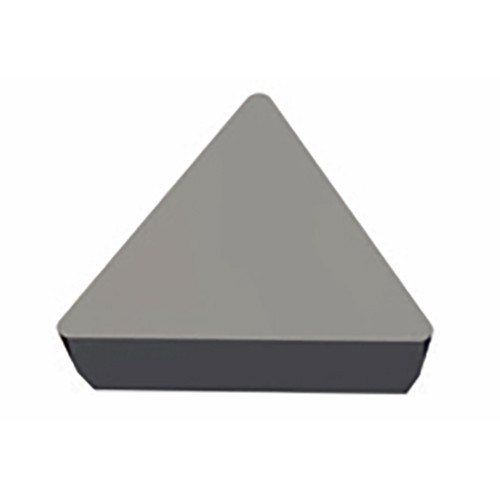

Taegutec TPGN 220408 AB30

Applicable Material:, Cast Iron, Hard Materials, Grade: AB30
Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 3 mm
Cutting Edge Length (L): 22 mm
Min. Turning Feed (ft(min)): 0.05 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Ceramic
Body Material: Carbide
Coating: TiCN+Al2O3
Unit: M
