Taegutec TPGN 220416 P20

Product Code: 5502061

$36.25$32.95 Ex. GST

Product Code: 5502061 SKU 5502061 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

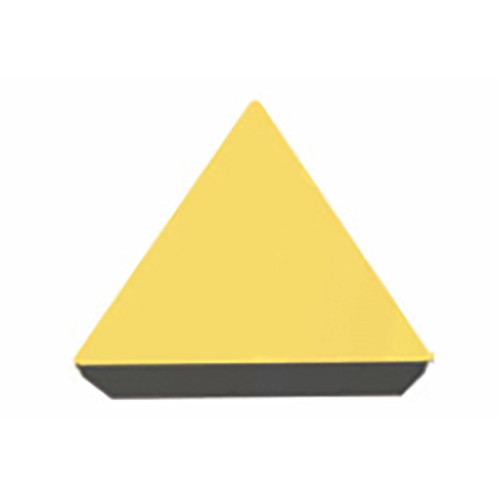

Positive triangular inserts without chip former for finish

Weight	0.0110 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: P20 Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1.5 mm Corner Radius (RE): 1.6 mm Depth of Cut Maximum (APMX): 7 mm Cutting Edge Length (L): 22 mm Min. Turning Feed (ft(min)): 0.2 mm/rev Insert Thickness (S): 4.76 mm Max. Turning Feed (ft(max)): 0.35 mm/rev Inscribed Circle Diameter (IC): 12.7 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M
