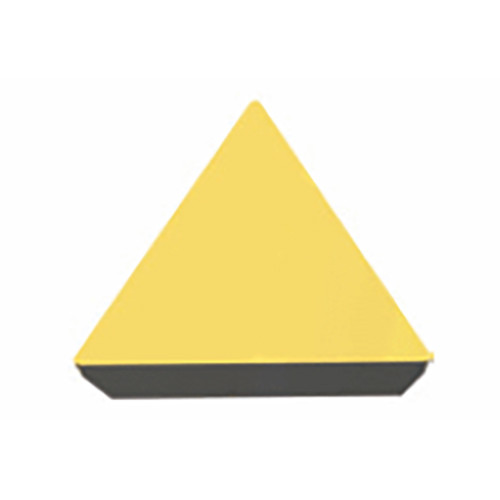

Taegutec TPGN 220430 P30

Applicable Material:, Steel, Grade: P30
Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1.5 mm
Corner Radius (RE): 3 mm
Depth of Cut Maximum (APMX): 7 mm
Cutting Edge Length (L): 22 mm
Min. Turning Feed (ft(min)): 0.3 mm/rev
Insert Thickness (S): 4.76 mm
Max. Turning Feed (ft(max)): 0.45 mm/rev
Inscribed Circle Diameter (IC): 12.7 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: Uncoated
Unit: M
