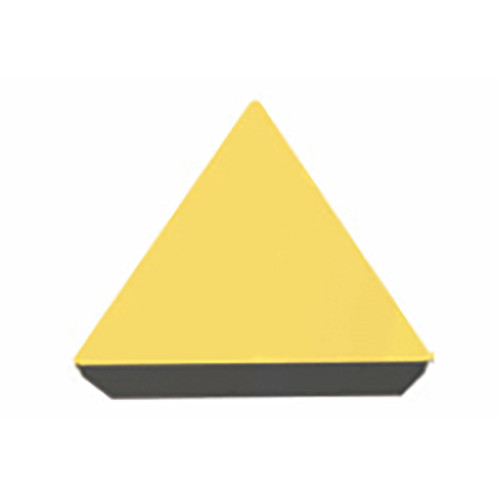

Taegutec TPGN 270608 TT8115B

Applicable Material:, Steel, Grade: TT8115B
Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 3 mm
Corner Radius (RE): 0.8 mm
Depth of Cut Maximum (APMX): 8 mm
Cutting Edge Length (L): 27.5 mm
Min. Turning Feed (ft(min)): 0.15 mm/rev
Insert Thickness (S): 6.35 mm
Max. Turning Feed (ft(max)): 0.25 mm/rev
Inscribed Circle Diameter (IC): 15.88 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN+Al2O3+TiN
Unit: M
