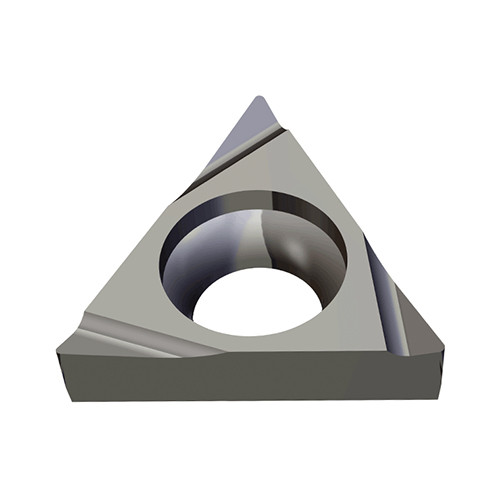

Taegutec TPGT 080202 R-FF TT9020

Description

Positive ground 60° Triangular inserts with ground chip former for finish to medium machining of small components

Weight	0.0018 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Grade: TT9020 Application:, Ext 91° App 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.1 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 0.4 mm Cutting Edge Length (L): 0 mm Min. Turning Feed (ft(min)): 0.03 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 4.76 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M
