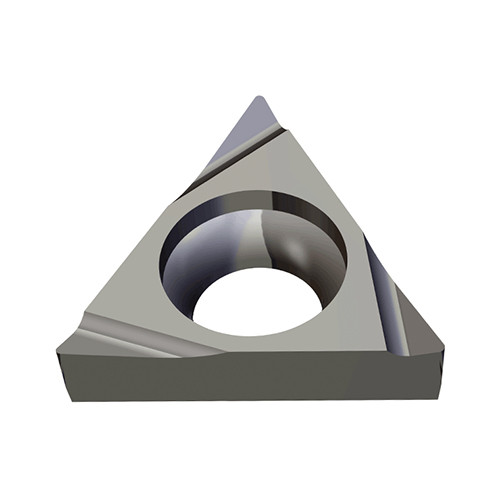

Taegutec TPGT 110301 L-FF TT9020

Applicable Material:, Steel, Stainless Steel, Grade: TT9020
Application:, Ext 91° App 60° Triangle, Ext 93° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.1 mm
Corner Radius (RE): 0.1 mm
Depth of Cut Maximum (APMX): 0.5 mm
Cutting Edge Length (L): 0 mm
Min. Turning Feed (ft(min)): 0.03 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.12 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiCN
Unit: M
