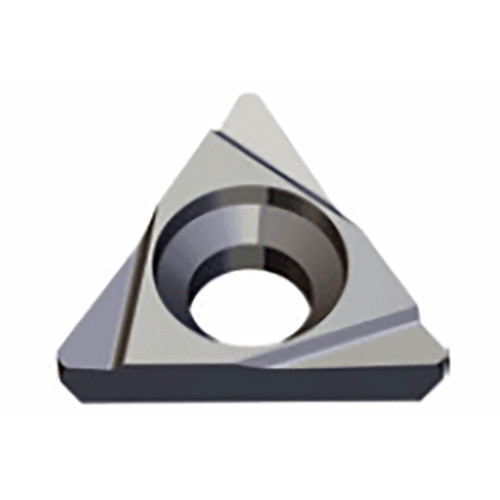

Taegutec TPGX 090202 L CT3000

Product Code: 5801546

$24.19$21.99 Ex. GST

Product Code: 5801546 SKU 5801546 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive 60° ground Triangular inserts for finishing with ground chip former with 11° clearance angle

Weight	0.0015 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: CT3000 Application:, Ext 91° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.4 mm Corner Radius (RE): 0.2 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 9.6 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.15 mm/rev Inscribed Circle Diameter (IC): 5.56 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: Cermet Unit: M
