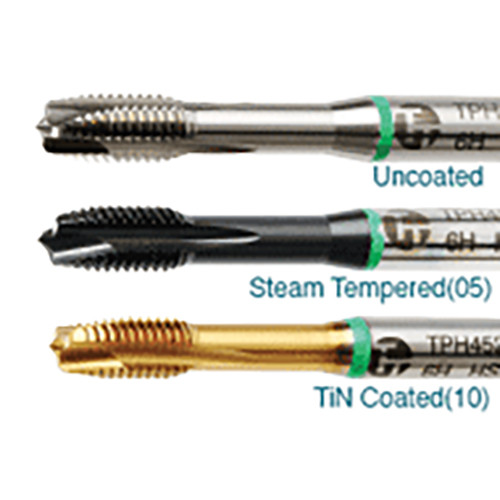

HSSE Gun point,machine taps for ISO metric threads, according to DIN 13,form B:4-5 threads chamfer.
Additional information
Weight
0.0030 kg
Dimensions
barcode
Additional Information
Thread Diameter Size (TDZ): M3 mm
Tapping Prehole Diameter (Pre-hole): 2.5 mm
Thread Pitch (TP): 10 mm
Square Size: 2.7 mm
Overall Length (OAL): 56 mm
Measurement Type: Metric
Usable Length (LU): 18 mm
Body Material: HSS
Connection Diameter Machine Side (DCONMS): 3.5 mm
Unit: M
Application:, Taps for deep through hole, Taps for short through hole
