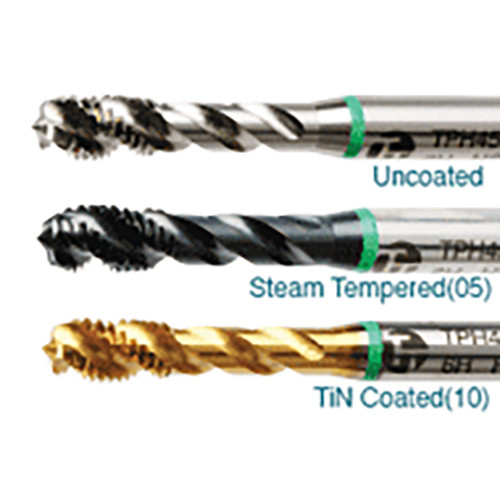

HSSE Right-hand 40 spiral flute,machine taps for ISO threads, according to DIN 13. (Form C:2-3 threads chamfer)
Additional information
Weight
0.0100 kg
Dimensions
barcode
Additional Information
Thread Diameter Size (TDZ): M5 mm
Flute Helix Angle (FHA): 40 Degrees
Thread Pitch (TP): 0.8 mm
Square Size: 4.9 mm
Overall Length (OAL): 70 mm
Measurement Type: Metric
Thread Cutting Part Length (THL): 10 mm
Application:, Deep hole with short thread, Taps for deep blind hole, Taps for short blind hole, Usable Length (LU): 25 mm
Body Material: HSS
Connection Diameter Machine Side (DCONMS): 6 mm
Unit: M
