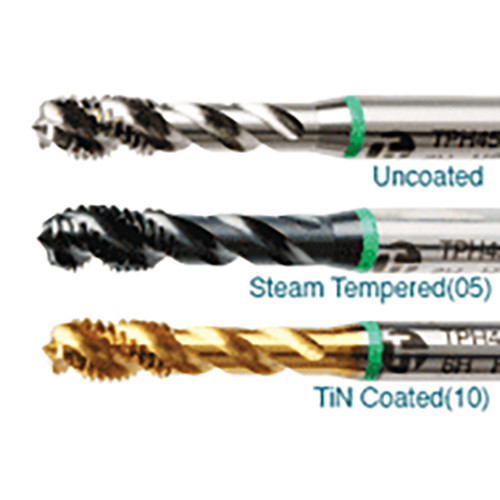

HSSE Right-hand 40 spiral flute,machine taps for ISO threads, according to DIN 13. (Form C:2-3 threads chamfer)
Additional information
Weight
0.0320 kg
Dimensions
barcode
Additional Information
Thread Diameter Size (TDZ): M10 mm
Flute Helix Angle (FHA): 40 Degrees
Thread Pitch (TP): 1.25 mm
Square Size: 5.5 mm
Overall Length (OAL): 100 mm
Measurement Type: Metric
Thread Cutting Part Length (THL): 18 mm
Application:, Deep hole with short thread, Taps for deep blind hole, Taps for short blind hole, Usable Length (LU): –
Body Material: HSS
Connection Diameter Machine Side (DCONMS): 7 mm
Unit: M
