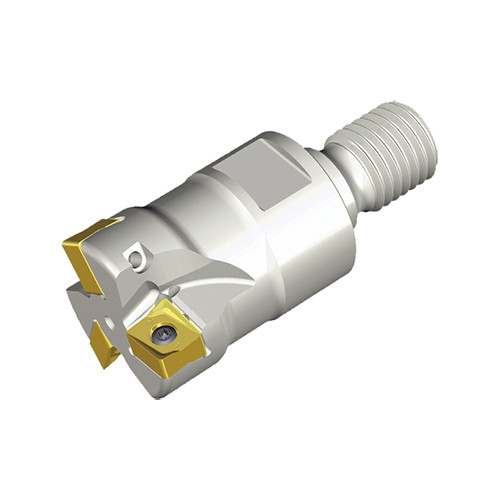

Plunging mills with T-FLEXTEC modular adaptation & 4 helical cutting edges of PLNG 09 inserts for plunging & facing
Additional information
Weight
0.1630 kg
barcode
Additional Information
Cutting Diameter (DC/DCX): 25 mm
Head Length (LH): 35 mm
Cutting Diameter (DC): 25 mm
Connection Thread Nominal Size Machine Side (THSZMS): M12
Cutting Item Count (CICT): 2
Measurement Type: Metric
Depth of Cut Maximum (APMX): 2.8 mm
Body Material: Steel
Application:, Counter Boring, Side Plunging, Unit: M
Master Insert Identification (MIID): PLNG 090408R-M
