Taegutec TPMT 090204 FA PV3010

Description

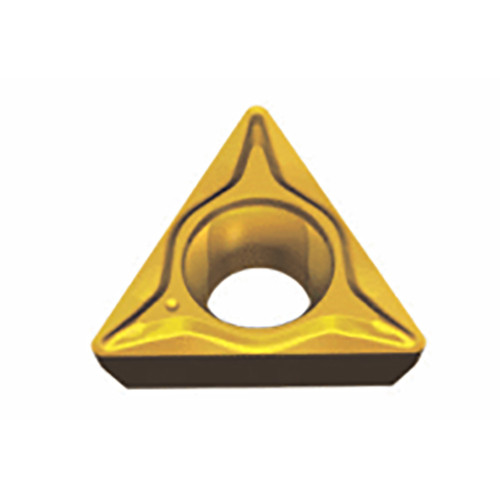

Positive Triangular inserts for super-finishing of steels, stainless steel & exotic materials with excellent chip control and 11 clearance angle

Weight	0.0017 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Cast Iron, Grade: PV3010 Application:, Ext 91° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.2 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 1.2 mm Cutting Edge Length (L): 9.6 mm Min. Turning Feed (ft(min)): 0.05 mm/rev Insert Thickness (S): 2.38 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 5.56 mm Measurement Type: Metric Cutting Edge Material: Cermet Body Material: Carbide Coating: TiN Unit: M
