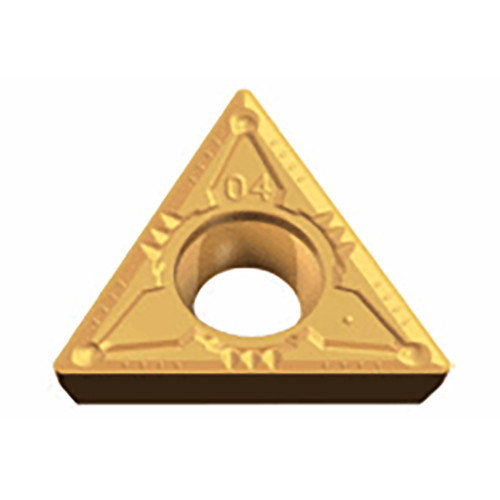

Taegutec TPMT 110304 FM TT5080

Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT5080
Application:, Ext 91° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.5 mm
Corner Radius (RE): 0.4 mm
Depth of Cut Maximum (APMX): 1.5 mm
Cutting Edge Length (L): 0 mm
Min. Turning Feed (ft(min)): 0.08 mm/rev
Insert Thickness (S): 3.18 mm
Max. Turning Feed (ft(max)): 0.2 mm/rev
Inscribed Circle Diameter (IC): 6.35 mm
Measurement Type: Metric
Cutting Edge Material: Carbide
Body Material: Carbide
Coating: TiAlN+TiN
Unit: M
