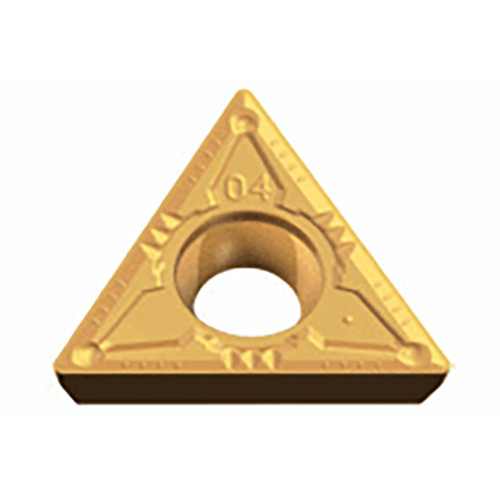

Taegutec TPMT 110308 FM TT8020

Description

Positive Triangular inserts for medium & semi-finishing machining of steels & stainless steels with low cutting force & 11° clearance angle

Weight	0.0025 kg
barcode
Additional Information	Applicable Material:, Steel, Stainless Steel, Super-Alloys / Titanium, Grade: TT8020 Application:, Ext 91° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.8 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 1.5 mm Cutting Edge Length (L): 0 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.2 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN Unit: M
