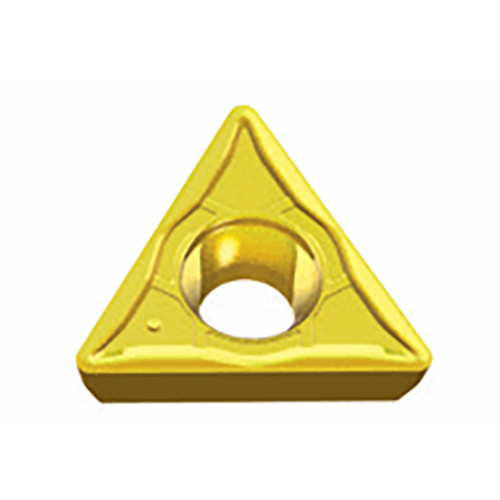

Taegutec TPMT 110308 PC TT8125B

Product Code: 6212248

$13.48$12.25 Ex. GST

Product Code: 6212248 SKU 6212248 Categories Carbide, CUTTING TOOLS (HSS & Carbide), INDEXABLE INSERTS

Need Technical Advice?

Head over to our other technical website - millerstooling.com.au

Positive Triangular inserts for medium applications of wide variety of materials with 11° clearance angle & low cutting force

Weight	0.0024 kg
barcode
Additional Information	Applicable Material:, Steel, Grade: TT8125B Application:, Ext 91° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.5 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 2.5 mm Cutting Edge Length (L): 11 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.26 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al2O3+TiN Unit: M
