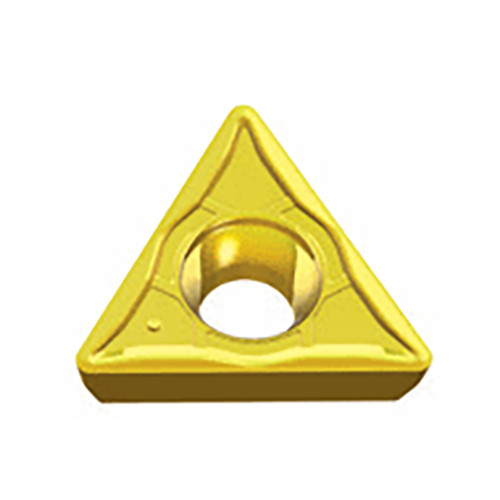

Taegutec TPMT 16T304 PC TT9215

Description

Positive Triangular inserts for medium applications of wide variety of materials with 11° clearance angle & low cutting force

Weight	0.0056 kg
barcode
Additional Information	Applicable Material:, Stainless Steel, Super-Alloys / Titanium, Grade: TT9215 Application:, Ext 91° App 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 0.45 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 11 mm Min. Turning Feed (ft(min)): 0.08 mm/rev Insert Thickness (S): 3.97 mm Max. Turning Feed (ft(max)): 0.25 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: TiCN+Al203+TiCN Unit: M
