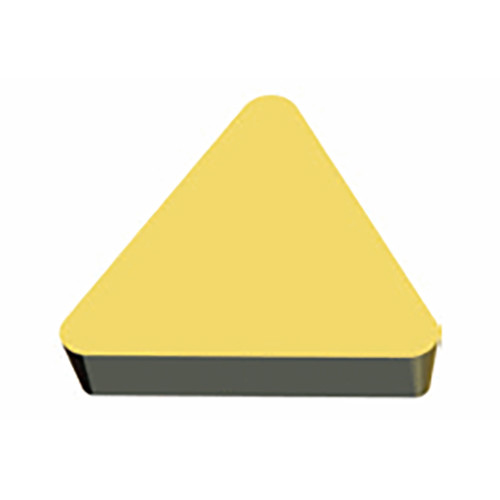

Home » Shop » CUTTING TOOLS » COUNTERSINK » INDEXABLE INSERTS » Taegutec TPUN 110304 P20
$8.45$7.68 Ex. GST
Positive triangular inserts for medium machining
Applicable Material:, Steel, Grade: P20 Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1 mm Corner Radius (RE): 0.4 mm Depth of Cut Maximum (APMX): 3 mm Cutting Edge Length (L): 11 mm Min. Turning Feed (ft(min)): 0.1 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.3 mm/rev Inscribed Circle Diameter (IC): 6.35 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M
