$13.09$11.90 Ex. GST

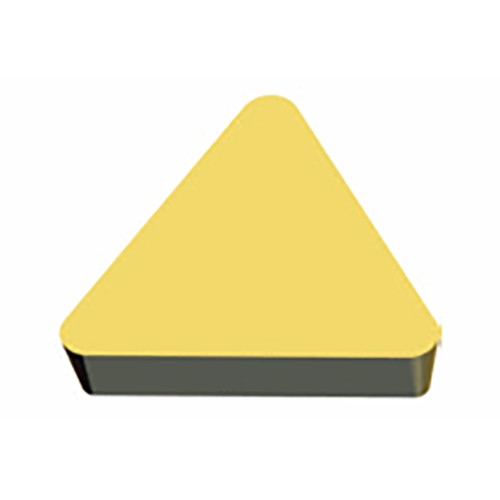

Positive triangular inserts for medium machining

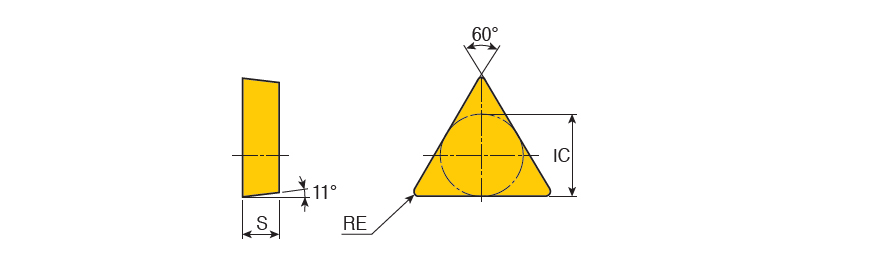

Applicable Material:, Steel, Grade: P30 Application:, Ext 90° App Face 60° Triangle, Ext 91° App 60° Triangle, Ext 91° App Face 60° Triangle, Inserts, Int 91° App 60° Triangle, Min D.O.C.: 1 mm Corner Radius (RE): 0.8 mm Depth of Cut Maximum (APMX): 5 mm Cutting Edge Length (L): 16.5 mm Min. Turning Feed (ft(min)): 0.15 mm/rev Insert Thickness (S): 3.18 mm Max. Turning Feed (ft(max)): 0.4 mm/rev Inscribed Circle Diameter (IC): 9.52 mm Measurement Type: Metric Cutting Edge Material: Carbide Body Material: Carbide Coating: Uncoated Unit: M
