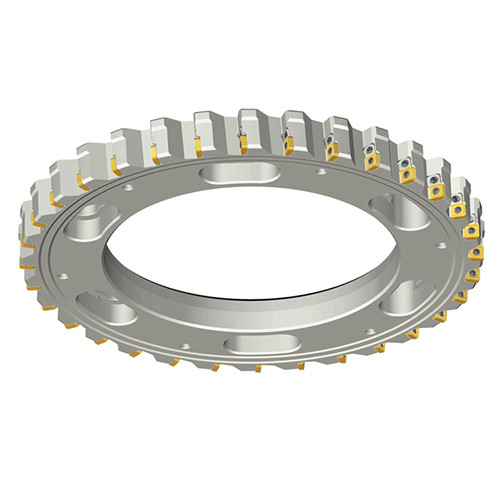

Ring type quick change cutters with adjustable pockets and precision ground wiper SN 12 inserts for cast iron finishing
Additional information
Weight
17.6000 kg
Dimensions
barcode
Additional Information

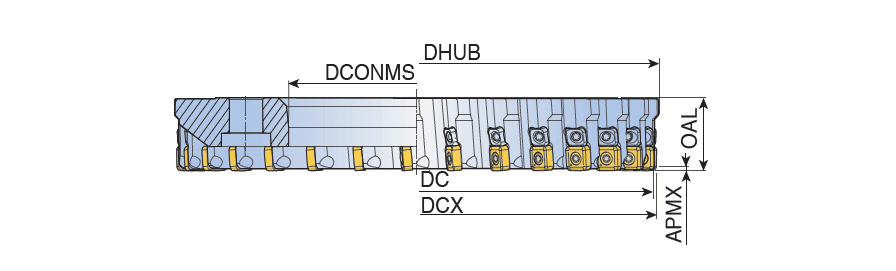

Cutting Diameter (DC): 315 mm
Master Insert Identification (MIID): SNEX 1204-W
Cutting Item Count (CICT): 36
Body Material: Steel
Depth of Cut Maximum (APMX): 1 mm
Application:, Facing, Connection Diameter Machine Side (DCONMS): 146.05 mm
Measurement Type: Metric
Overall Length (OAL): 38 mm
Unit: M
