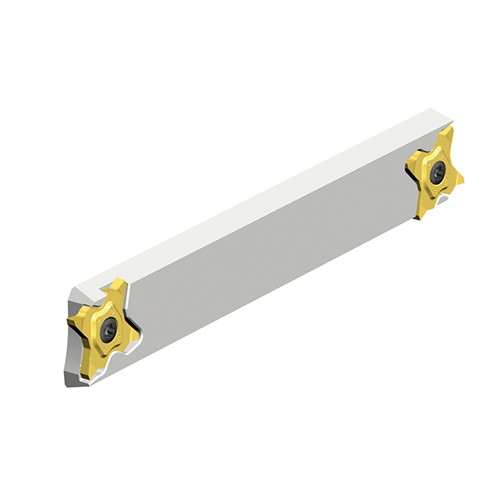

Double ended parting & grooving blades with TQ. 27 inserts
Additional information
Weight
0.5000 kg
Dimensions
Length 15cm x Width cm x Depth cm
barcode
Additional Information

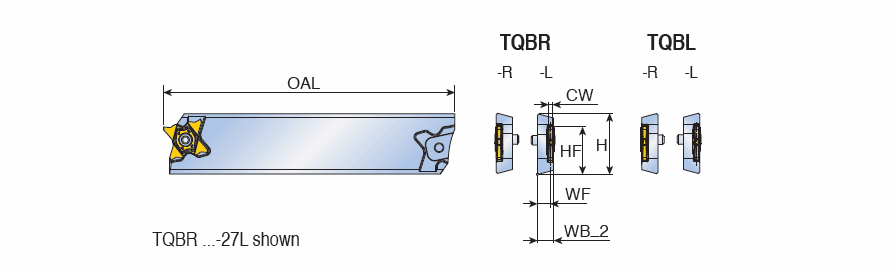

Shank Height (H): 26 mm
Work Piece Parting Diameter Maximum (CUTDIA): 27
Shank Width (B): 8.5 mm
Cutting Direction (HAND): Left Hand
Cutting Width Minimum (CWN): 0.5 mm
Measurement Type: Metric
Cutting Width Maximum (CWX): 5.3 mm
Insert Seat Size Code (SSC): 27
Overall Length (OAL): 150 mm
Master Insert Identification (MIID): ‎TQJ 27-2.00-6R
Application:, Ext. Grooving, Parting, Unit: M
Body Material: Steel
